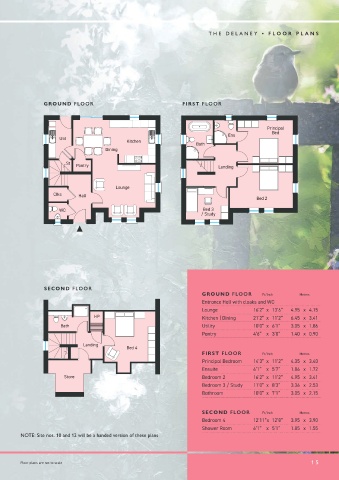

THE DEL ANE Y • FL OOR PL AN S

GROUND FLOOR FIRST FLOOR

Principal
Bed
Ens
Util
Kitchen
Bath
Dining
St Pantry Landing

Lounge
Clks Hall
Bed 2
WC Bed 3
/ Study

Our carefully selected palette of 3 complementary render colours SECOND FLOOR
will ensure that the house types are individual and the street scapes are characterful and varied. GROUND FLOOR Ft/Inch Metres

Entrance Hall with cloaks and WC
Lounge 16’2” x 13’6” 4.95 x 4.15
THE DEL ANE Y HP Kitchen | Dining 21’2” x 11’2” 6.45 x 3.41

24 Bath Utility 10’0” x 6’1” 3.05 x 1.86
17 23 Pantry 4’6” x 3’0” 1.40 x 0.90
4 BEDR OOM • DET A CHED
16 18 19 20
TOTAL FLOOR ARE A : 1619 sq ft 21 Landing Bed 4
22 FIRST FLOOR Ft/Inch Metres
15 CRAIGSTOWN ROAD
14 Principal Bedroom 14’3” x 11’2” 4.35 x 3.40
Ensuite
6’1” x 5’7”
1.86 x 1.72
7 Store Bedroom 2 16’2” x 11’2” 4.95 x 3.41
13 6 5 4 3 2 1 Bedroom 3 / Study 11’0” x 8’3” 3.36 x 2.53
Bathroom 10’0” x 7’1” 3.05 x 2.15
8
12 9 NIE
SECOND FLOOR Ft/Inch Metres
10
11 Bedroom 4 12’11” x 12’8” 3.95 x 3.90
Shower Room 6’1” x 5’1” 1.85 x 1.55
NOTE: Site nos. 10 and 12 will be a handed version of these plans
CARNCOME ROAD

14 T A WNYB RA CK GA TE • C ONNOR CGI shown for illustrative purposes only Floor plans are not to scale 15
