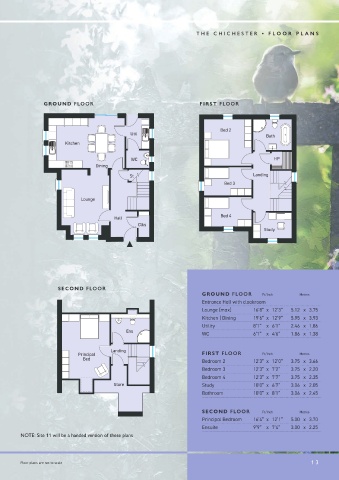

THE CHICHESTER • FL OOR PL AN S

GROUND FLOOR FIRST FLOOR

Bed 2
Util Bath
Kitchen

WC HP
Dining
St Landing
Bed 3

Lounge

Hall Bed 4
Clks
Study

Our carefully selected palette of 3 complementary render colours SECOND FLOOR
will ensure that the house types are individual and the street scapes are characterful and varied. GROUND FLOOR Ft/Inch Metres

Entrance Hall with cloakroom
Lounge (max) 16’8” x 12’3” 5.12 x 3.75
THE CHICHESTER Kitchen | Dining 19’6” x 12’9” 5.95 x 3.93

24 Ens Utility 8’1” x 6’1” 2.46 x 1.86
17 23 WC 6’1” x 4’6” 1.86 x 1.38
4 BEDR OOM • DET A CHED
16 18 19 20
TOTAL FLOOR ARE A : 1728 sq ft 21
22 Principal Landing FIRST FLOOR Ft/Inch Metres
15 CRAIGSTOWN ROAD Bed
14 Bedroom 2 12’3” x 12’0” 3.75 x 3.66
12’3” x 7’2”
3.75 x 2.20
Bedroom 3
7 Bedroom 4 12’3” x 7’7” 3.75 x 2.35
13 6 5 4 3 2 1 Store Study 10’0” x 6’7” 3.06 x 2.05
Bathroom 10’0” x 8’1” 3.06 x 2.45
8
12 9 NIE
SECOND FLOOR Ft/Inch Metres
10
11 Principal Bedroom 16’4” x 12’1” 5.00 x 3.70
Ensuite 9’9” x 7’4” 3.00 x 2.25
NOTE: Site 11 will be a handed version of these plans
CARNCOME ROAD

12 T A WNYB RA CK GA TE • C ONNOR CGI shown for illustrative purposes only Floor plans are not to scale 13
